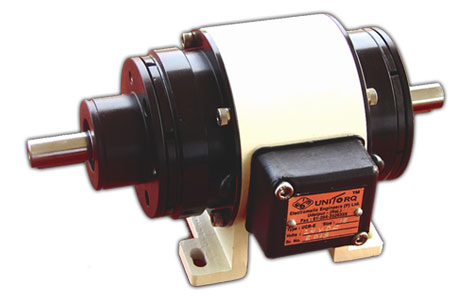

Clutch & Brake Combination with Tandom Shaft

Type - UCB-T - Torque : 8 NM - 500 NM

Clutch & Brake Combination Type - UCB-T

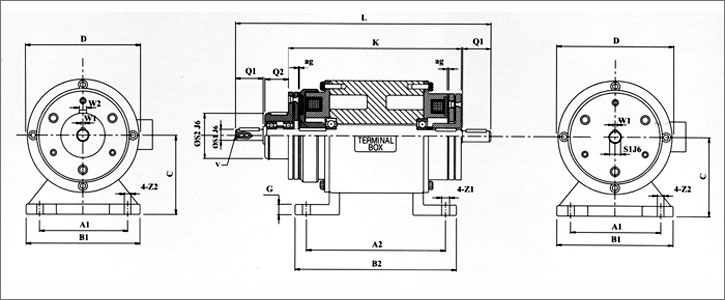

Dimension Series: UCB-T
Size/
Torque
Nm		 Voltage
DC		 Input
Wattage (20° C)		 Max
s RPM		 A1 A2 B1 B2 C D G
Clutch Brake
08 24/
96/
190
*Other
Voltages
on
request		 15 11.5 8000 55 75 80 90 55 80 6
15 20 16 6000 65 90 90 105 65 100 8
30 28 21 5000 80 110 110 130 80 125 8
60 35 28 4000 105 135 140 160 90 150 8
125 50 38 3000 135 160 175 185 112 190 15
250 68 45 3000 155 200 200 230 132 230 15
500 85 70 2000 192.5 240 240 270 160 290 15
Size K L Q1 Q2 S1 J6 S2 J6 W1 W2 Z2 Z1 ag
08 106.6 182 25 20 11 38 4 10 13.5 6.5 0.25
15 126.6 216 30 25 14 45 5 14 13.5 6.5 0.25
30 154 270 40 30 19 55 6 16 15.5 9.0 0.3
60 183.6 332 50 40 24 64 8 18 20 11.5 0.35
125 222 400 60 50 28 75 8 20 24.5 11.5 0.4
250 276 505 80 60 38 90 10 25 28 14 0.5
500 334   110 70 42 115 12 25 28.5 14 0.5
  • 1Nm=0.102 kgm = 0.737 Ib-ft=10.2 kgcm
  • All dimensions are in mm only
