Electromagnetic Clutch & Brake Combination

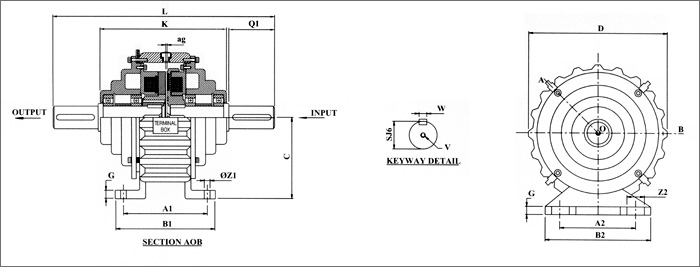

Clutch & Brake Combination Type - UCB-E

Size/ Torque Nm	Voltage DC	Input Wattage (20° C)		RPM			B1	B2	C	d	g	L	K	Q1	SJ6	V	W	Z1	Z2	ag
Size/ Torque Nm	Voltage DC	Clutch	Brake	RPM			B1	B2	C	d	g	L	K	Q1	SJ6	V	W	Z1	Z2	ag
08	24/ 96/ 190 * Other Voltages on request	15	11.5	8000	80	90	100	110	63	104	6	175	126	23	11	M 4x10	4	6.5	13.5	0.2
15		20	16	6000	95	105	112	127	71	132	8	210	147	30	14	M 5x12	5	7	13.5	0.2
30		28	21	5000	100	140	130	170	90	167	8	272	168	50	24	M 6x20	8	10	15	0.3
60		35	28	4000	130	150	157	181	100	187	8	320	197	60	28	M 8x25	8	12	20	0.3
125		50	38	3000	160	175	188	218	132	227	15	383	220	80	38	M 8x25	10	14	24	0.3
250		68	45	300	165	230	200	280	160	280	16	410	246	80	42	M 10x30	12	20	25	0.5
500		85	70	2000	185	270	225	325	200	350	20	428	265	80	42	M 10x30	12	20	25	0.5

1Nm=0.102 kgm = 0.737 lb-ft=10.2 kgcm
All dimensions are in mm only
